Accessing MySQL Flexible Server in a Virtual Network from On-Premises Networks

The Challenge

Azure Database for MySQL Flexible Server, one of Microsoft's PaaS MySQL offerings, supports a native virtual network deployment to avoid data exfiltration and meet industry compliance requirements. Moreover, utilizing Azure VPN Gateway Point-to-Site connections is popular to facilitate communication with resources located in an Azure virtual network from on-premises workstations. By default, MySQL Flexible Server is accessible from an on-premises network through its private IP address, but not its DNS name. This post demonstrates that a low-cost Windows Server 2019 VM can serve as a DNS forwarder for on-premises workstations accessing MySQL Flexible Server in a virtual network through its DNS name.

How does Flexible Server Name Resolution Work?

The ARM template linked in the following section provisions an Azure private DNS zone that is attached to the application virtual network. Azure private DNS zones simplify name resolution for resources located in virtual networks, such as VMs. However, records in a private DNS zone cannot be resolved from an on-premises network.

The solution is to utilize a virtual machine as a DNS forwarder. The virtual machine is configured as the DNS server for the virtual network, and clients on that network, including on-premises resources connecting through VPN, will use that virtual machine for name resolution. Azure provides the virtual public IP address of 168.63.129.16 to, among other purposes, resolve DNS lookups from private DNS zones. The VM DNS service will forward requests to that virtual public IP.

Resources

This post assumes the following fundamental knowledge:

Networking

Azure Database for MySQL (Flexible Server)

Configuration Steps

ARM Template

The ARM template provided with this post will provision Azure Database for MySQL Flexible Server in a virtual network; a VPN Gateway to connect to the virtual network from an on-premises network; and a Virtual Machine, which will function as a DNS forwarder.

Connect to the VPN Gateway from an On-Premises Network

Follow the steps in this Microsoft TechCommunity post to generate a certificate pair for the VPN Gateway, modify the Point-to-site configuration , and download the Azure VPN client.

Note that if you encounter issues connecting from your client machine, you may need to Reset the VPN Gateway after making configuration changes. This is easy to do from the Reset tab in the Azure portal.

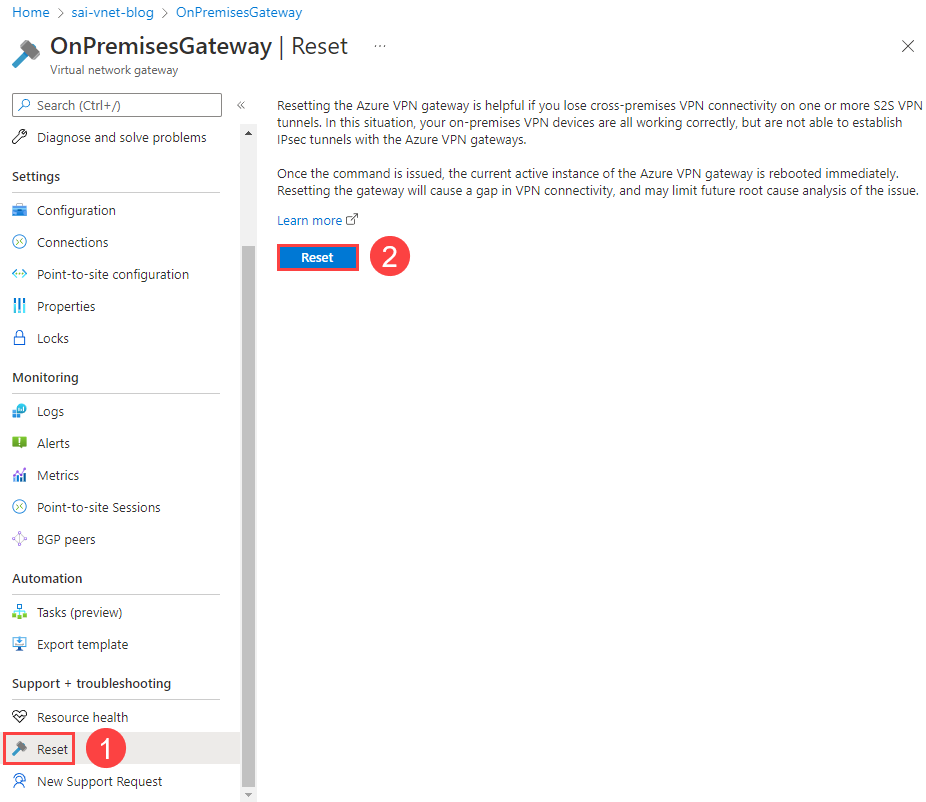

VPN Gateway reset
This image demonstrates how to reset a VPN Gateway from the Azure portal.

Connect to the DNS Forwarder VM over the VPN

The DNS Forwarder VM has a fixed private IP address of 192.168.4.10. As it does not have a public IP address, you need to access the VM over the VPN connection using its private IP address. Connect using the RDP client of your choice.

The default VM username is sqlroot. Use the password you configured in the ARM template parameters.

Install and Configure the DNS Service

Install the DNS service using Server Manager and the Add Roles and Features Wizard.

Note : Ignore any warnings about the assigned IP address not being static. The DNS forwarder is statically assigned the same IP address of 192.168.4.10 in the ARM template.

Launch the DNS Manager utility from Server Manager (below the Tools menu in the upper right-hand corner of the window). Add 168.63.129.16 as a forwarding DNS server reference.

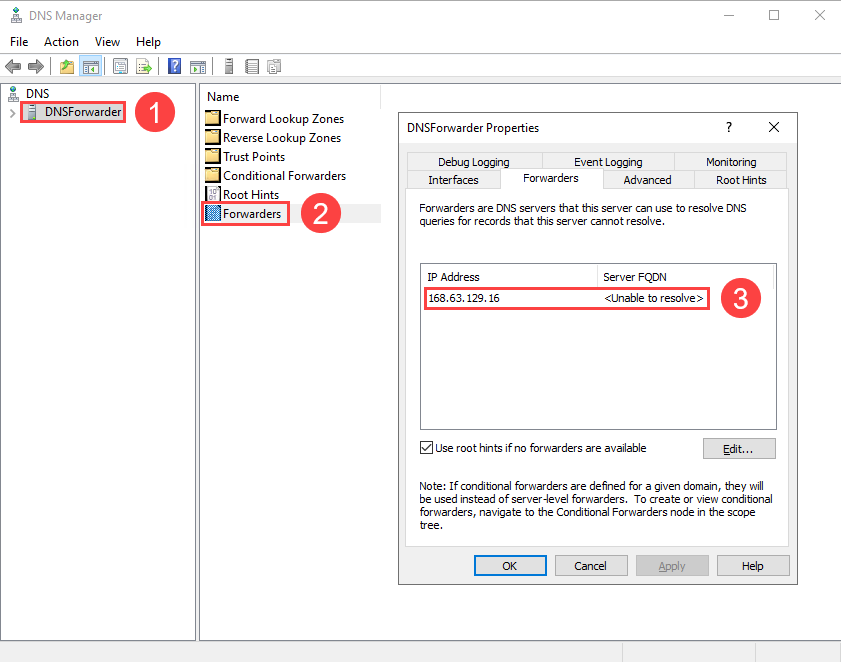

Forwarding DNS server IP address
This image demonstrates the Azure virtual public IP added as a forwarding DNS server.

Disconnect from the VM: your configuration is complete. Also, disconnect from the VPN.

Add the DNS Server IP Address to the Virtual Network

In the Azure portal, navigate to the deployed AppVirtualNetwork and select the DNS servers tab. Add a reference to the DNSForwarder VM (192.168.4.10).

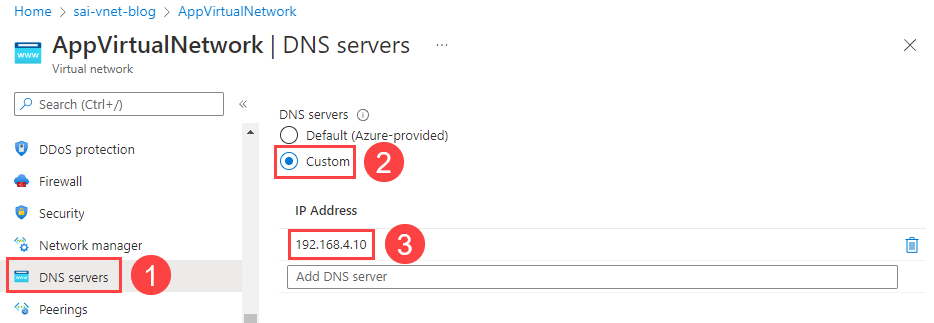

Updated virtual network DNS server references
This image demonstrates the custom DNS server (DNSForwarder VM) added to the virtual network DNS configuration.

Reconnect to the VPN Gateway

As explained previously, Reset the VPN Gateway to reflect the new DNS server configuration. Moreover, download the VPN client from the Point-to-site configuration tab of the VPN Gateway again, as the client's configuration file will store the new DNS server IP address. Note that you may need to remove the old VPN configuration on your system before installing the new client.

Reconnect to the VPN. Below is an image of the output of the ipconfig /all command on Windows, demonstrating the DNS server for the VPN connection. The ifconfig utility functions similarly on macOS and Linux.

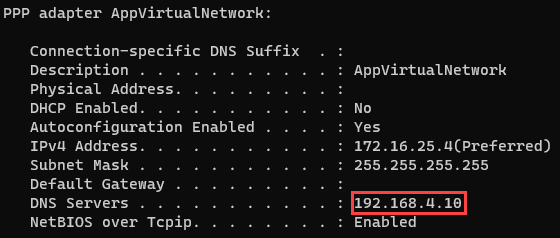

VPN connection DNS server IP address
This image demonstrates the DNS server IP address for the VPN connection.

Test DNS Resolution

Download the latest version of the MySQL Workbench MySQL client.

Add a new connection. For the Hostname tab, provide app-mysql-flex-SUFFIX.mysql.database.azure.com as the server URL (1). Moreover, update the Username to sqlroot (2). Then, select Test Connection (3).

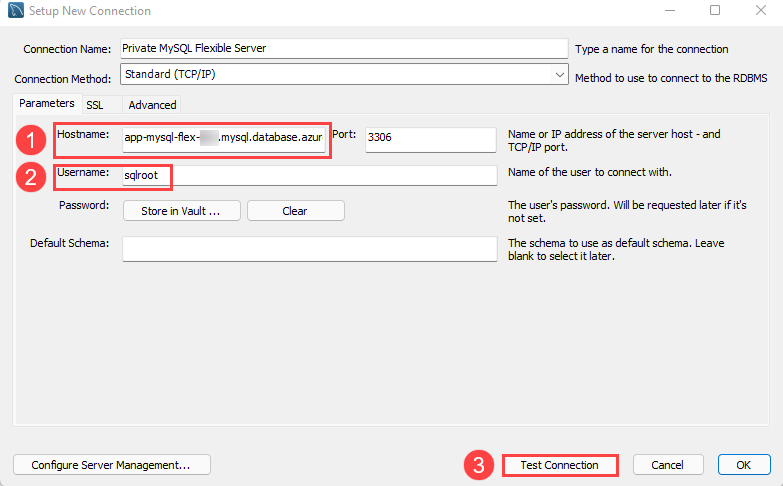

Server access test
This image demonstrates a server access test from MySQL Workbench.

When prompted, enter the admin password you configured during the ARM template deployment. If all goes well, MySQL will indicate that the connection was made successfully.

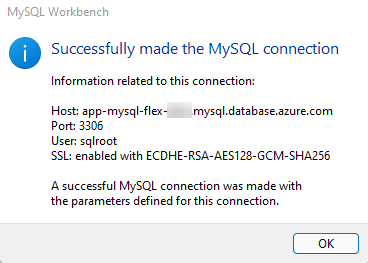

Successful MySQL connection
This image demonstrates that the MySQL connection was successful.

Disconnect from the VPN and try to Test Connection again. The connection will fail, as the endpoint is not configured for public access.

Troubleshooting

If the previous test did not work, here are some factors to consider.

  • If you are unable to initiate a VPN connection with Azure, ensure that you provided the root certificate to Azure in the Point-to-site configuration tab of the Azure portal. Provide just the certificate data: not the beginning and end markers. Also, Reset the VPN Gateway
  • Check whether the correct DNS server address (192.168.4.10) is provided to the client workstation. Use the ipconfig (Windows) and ifconfig (macOS/Linux) to determine this
  • Ensure that you added the DNS Forwarder IP address as the DNS server IP address for AppVirtualNetwork
  • Ensure that the Flexible Server instance is not paused

Conclusion

Undoubtedly, setting up a DNS Forwarder VM adds additional cost and complexity to your solution. Before deploying one, consult the Azure documentation to determine whether a DNS forwarder is necessary for your hybrid scenario.

In addition, it is possible to use a Linux (Ubuntu) virtual machine and Bind9, instead of Windows Server 2019 and the Windows DNS Service. Consult Microsoft's sample ARM template.

This post uses the Azure portal to perform configuration tasks. However, this post by Ankit Sarkar demonstrates how some of these tasks can be automated through Azure PowerShell.

Lastly, this post simply focuses on how to reliably connect to a Flexible Server instance from an on-premises network, a useful task during development, or to simply migrate a database to Azure while keeping the enterprise application hosted on-premises. Azure Kubernetes Service nodes can be deployed to virtual networks, and Azure Container Registry has support for secure network access through private endpoints. These features allow developers to architect secure cloud-native apps.
